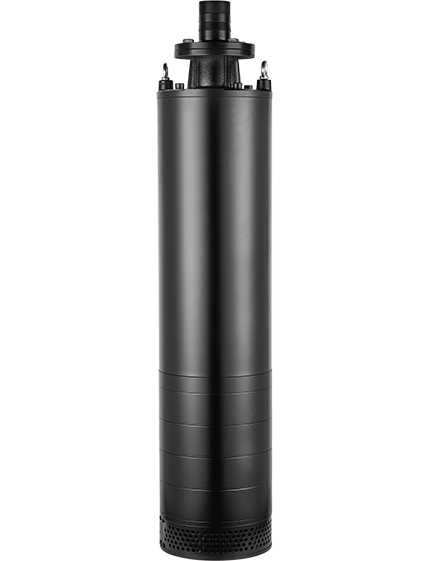

QXN11KW-25KW

• Applications

  For mining, building, factory and industrial applications.
  For water supply from wells, tanks or reservoirs.
  For garden use and agricultural irrigation.

  Operating Limits

  • Water temperature:up to 40°C
  • PH: 6.5 - 8.5
  • Power supply:three phase, 380V ± 10%, 50Hz; 380V ± 10%, 60Hz
  • Power: 11kW to 25kW
  • Insulation class: B
  • Protection class: IP68
  • Capacity: up to 100 m³/h
  • Head: up to 204 meters
  • Maximum immersion depth: 20m
  • Cable length: 10m

  Special features on request

  Other voltages
  The length of cable is optional
