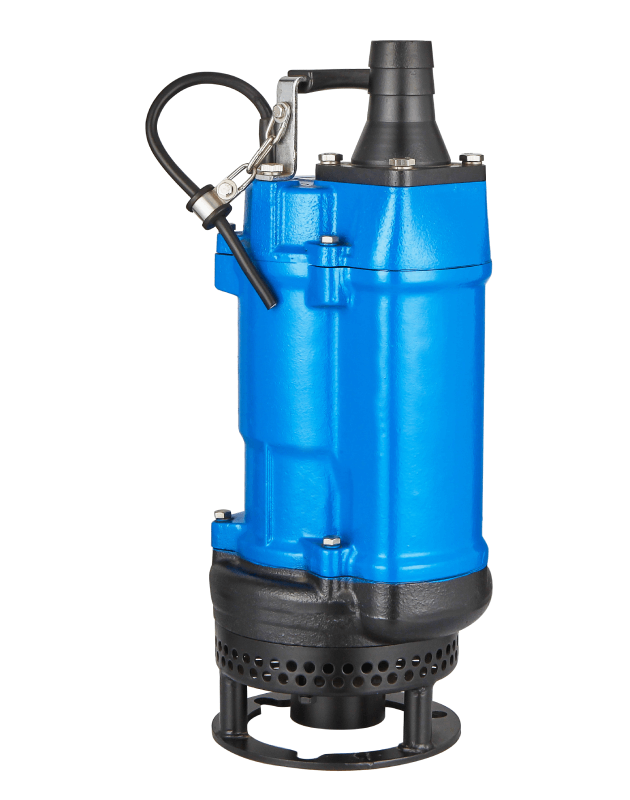

Slurry Pump KBD 50/60Hz

• Application Area

  • The Agitator Pump KBD Series is a cast iron made, heavy-duty slurry pump employing the KBZ Series as the base.
  • An agitator is provided to assist smooth suction of the pumping fluid.
  • The side-flow, top-discharge design keeps the motor cooling even if the pump is operated continuously with its motor exposed in air, and it makes the pump easier to be placed in a confined space.
  • This pump is suitable for transferring or draining bentonite slurry used for slurry drilling, draining slurry mixed water in civil engineering works or foundation works.

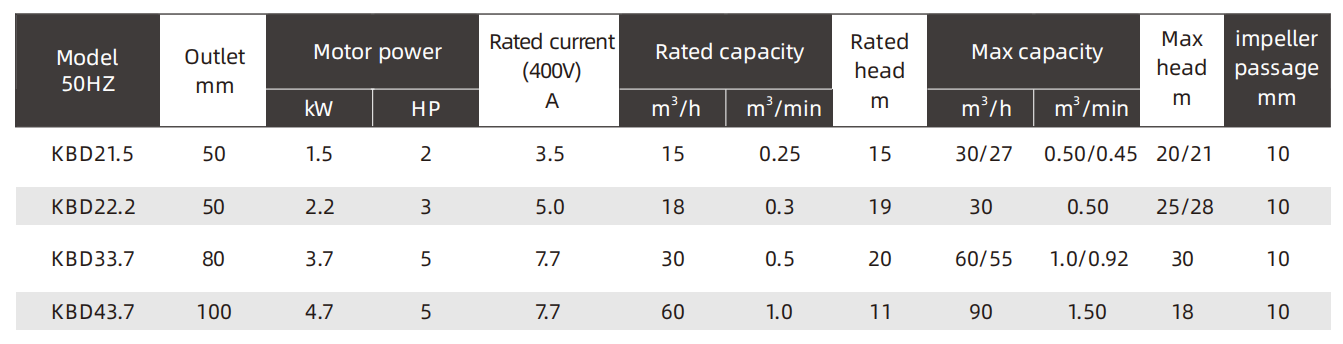

  Operating Limits

  • Capacity: up to 90 m³/h
  • Head: up to 30 meters
  • Power: 1.5kW(2HP) to 3.7kW (5HP)
  • Power supply: three phase 380V ± 10%, 50Hz
  • Cable length: 10m
  • Water temperature: up to 40°C
  • Max. water depth: 20m

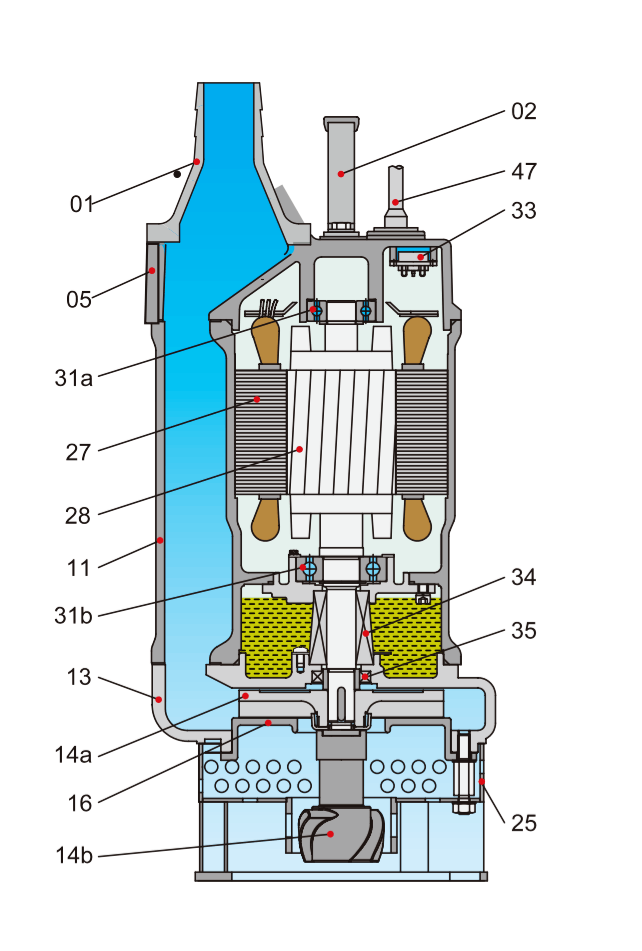

  Structural Characteristics

  • Insulation Class: F
  • Protection Class: IP68
