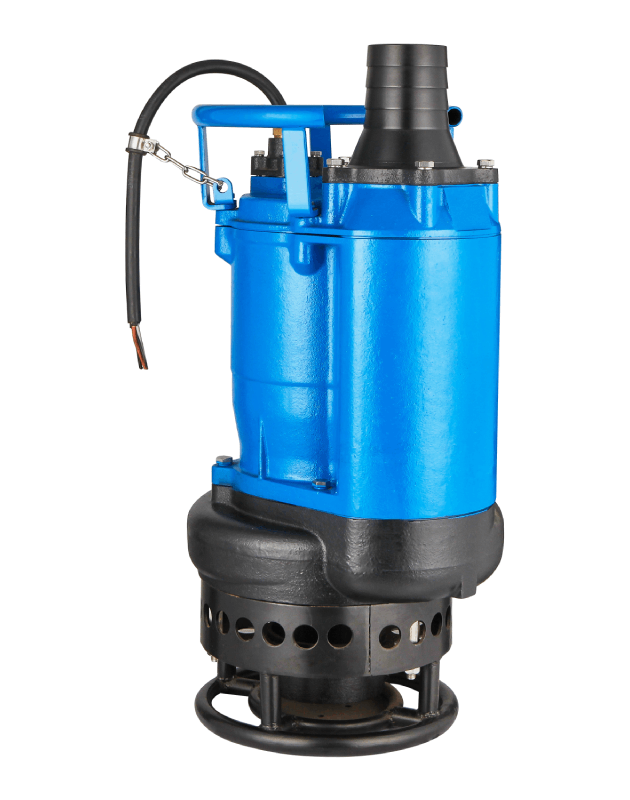

Slurry Pump KBS 50/60Hz

• Application Area

  Submersible slurry pump with a 4-pole motor for an increased lifetime and greater convenience. High chrome alloy impeller combined with agitator for pumping heavy slurry.
  Slim design with a top discharge enabling installation in smaller casing.
  For bentonite mixed water in foundation works or muddy water in civil engineering works.

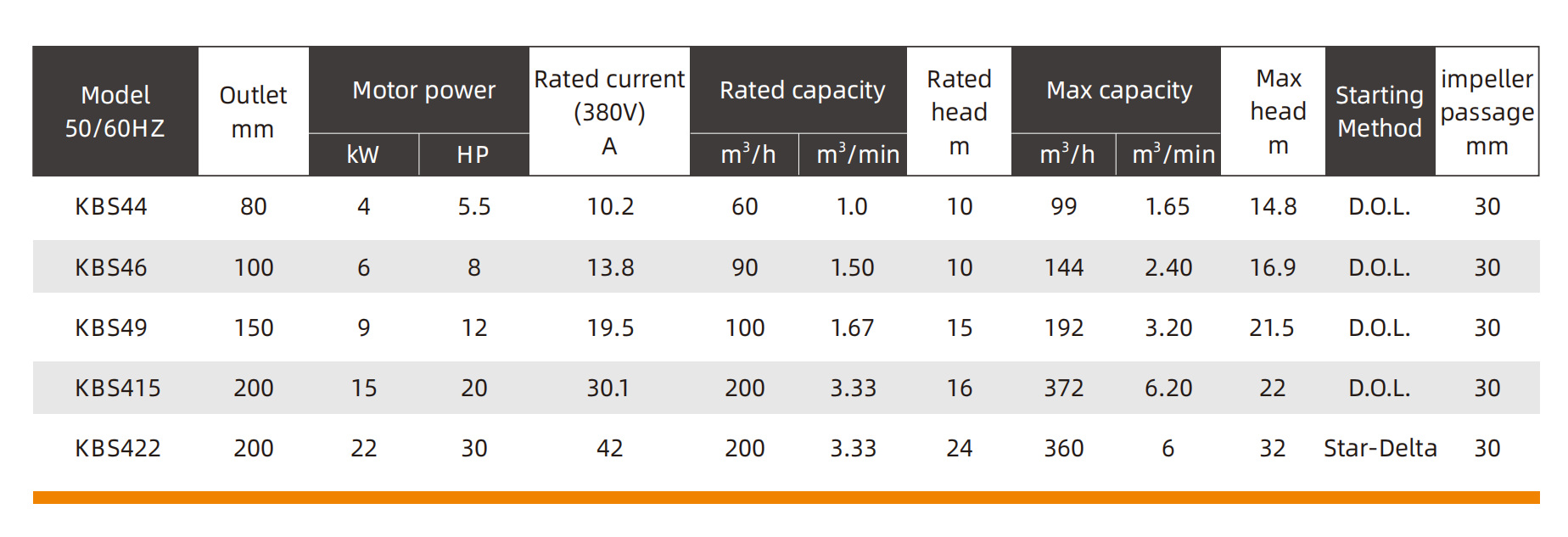

  Operating Limits

  • Capacity: up to 372 m³/h
  • Head: up to 32 meters
  • Discharge: 80mm(3") to 200mm(8")
  • Power: 4 kW(5.5HP) to 22 kW (30HP)
  • Power supply: three phase 380V ± 10%, 50Hz
  • Cable length: 10m
  • Water temperature: up to 40°C
  • Max. water depth: 15m

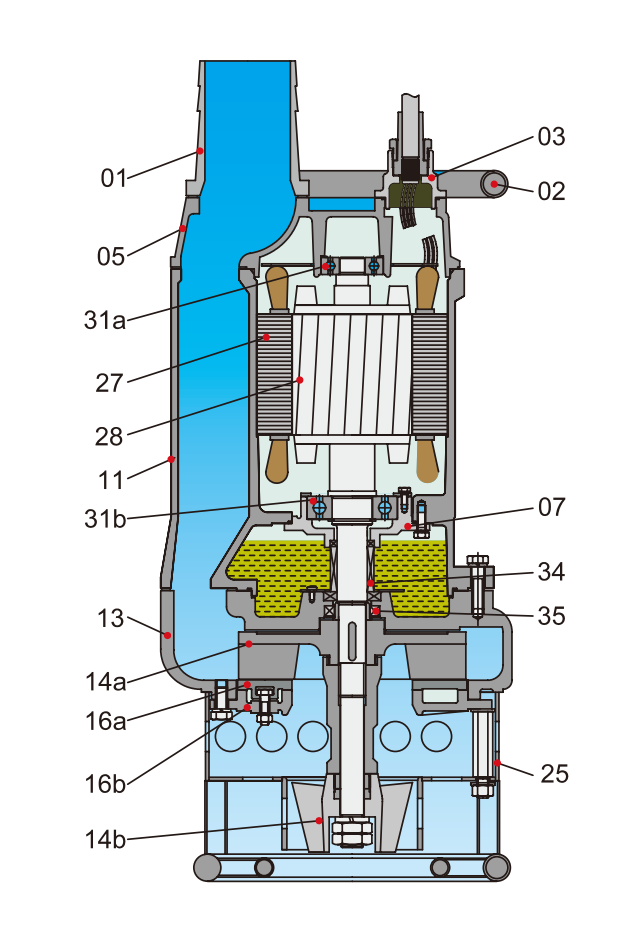

  Structural Characteristics

  • Insulation Class: F
  • Protection Class: IP68
