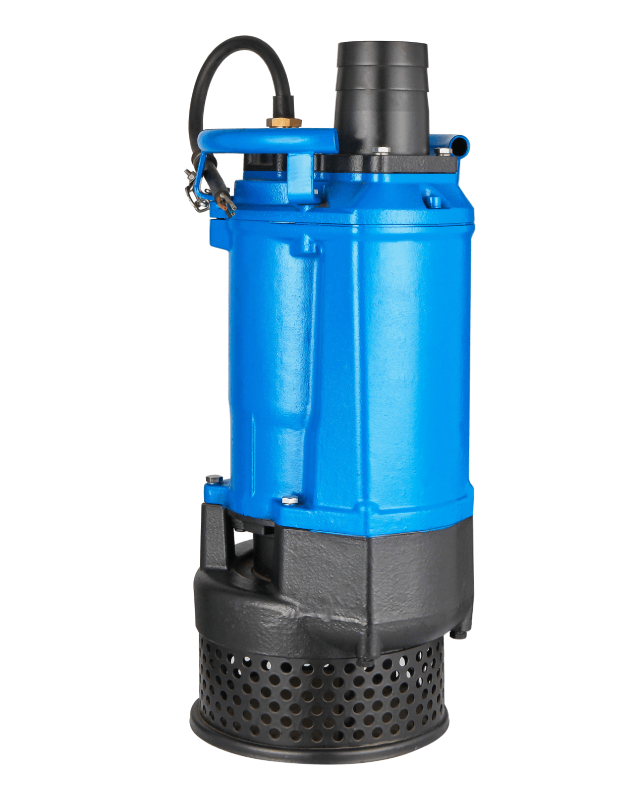

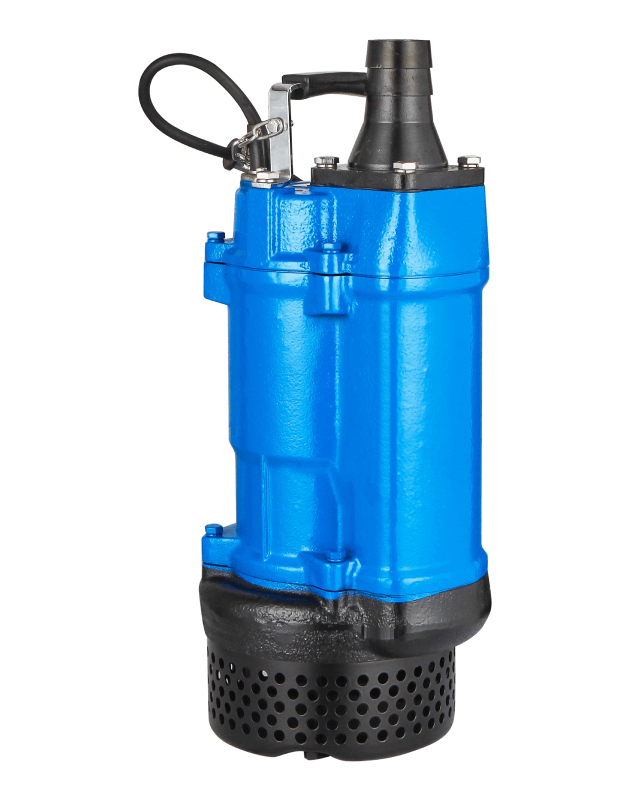

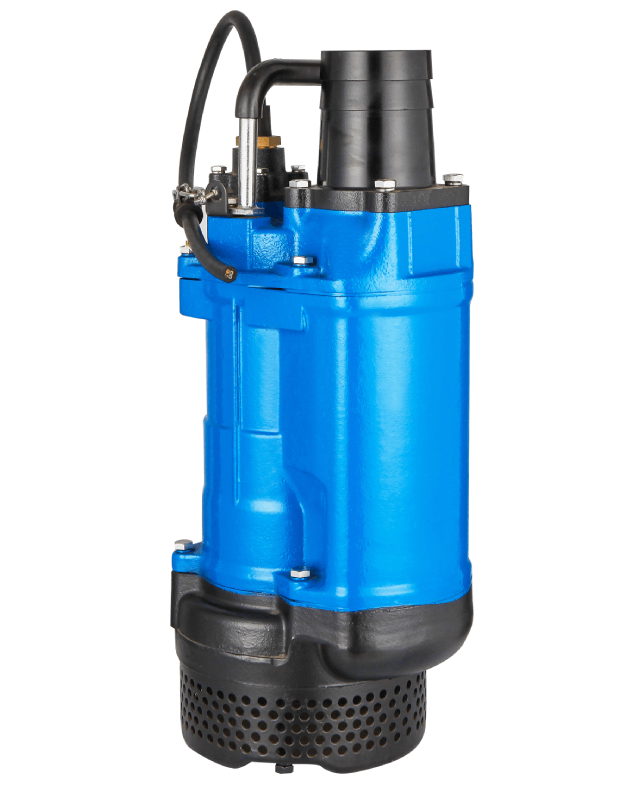

Submersible Drainage Pump KBZ 50Hz

• Application Area

  • The body of motor and pump is made of rigid cast iron which can be used for long-lasting durability.

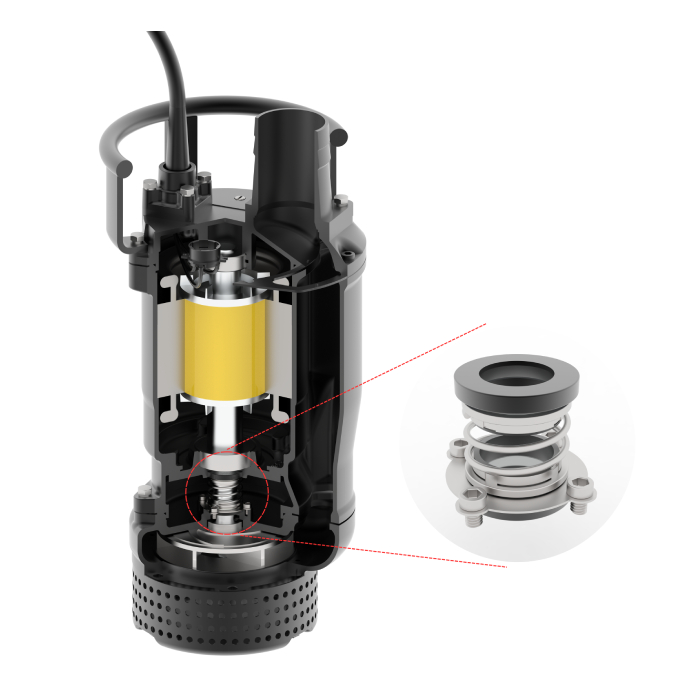

  • Greatly increased maximum submersion depth due to mechanical seal resistant to high pressure.

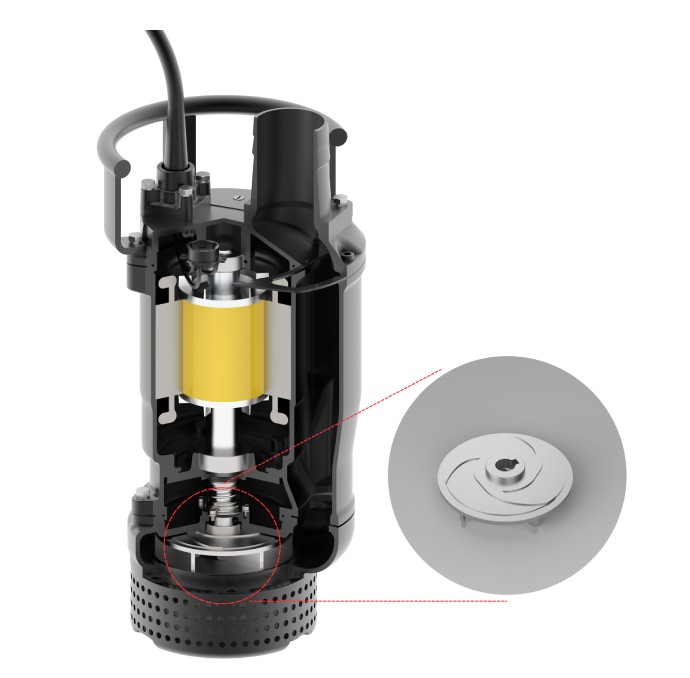

  • The impeller and inlet plate are made of high chrome alloy. The hardness of this material is at least 58 HR, it’s more durable than other materials.

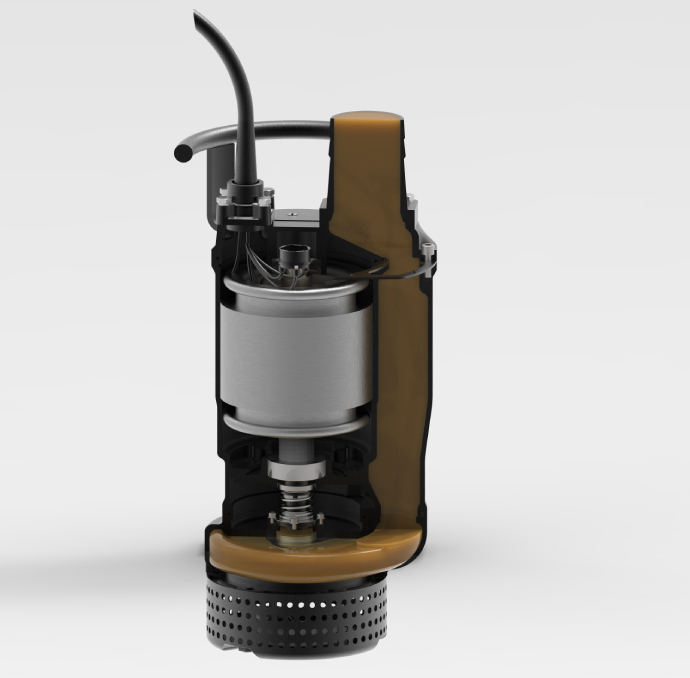

  • Due to the special design of the water passage, the water can make the motor cool down when they pass through the pump body.
  • With the vertical outlet design at the top, this pump can be used in smaller space.

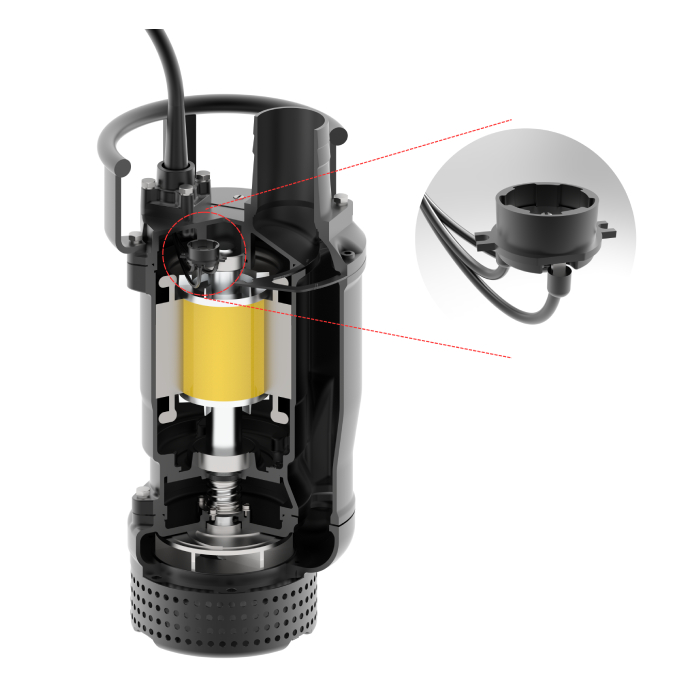

  • This pump has built-in thermal protection to protect the motor over thousands of times.

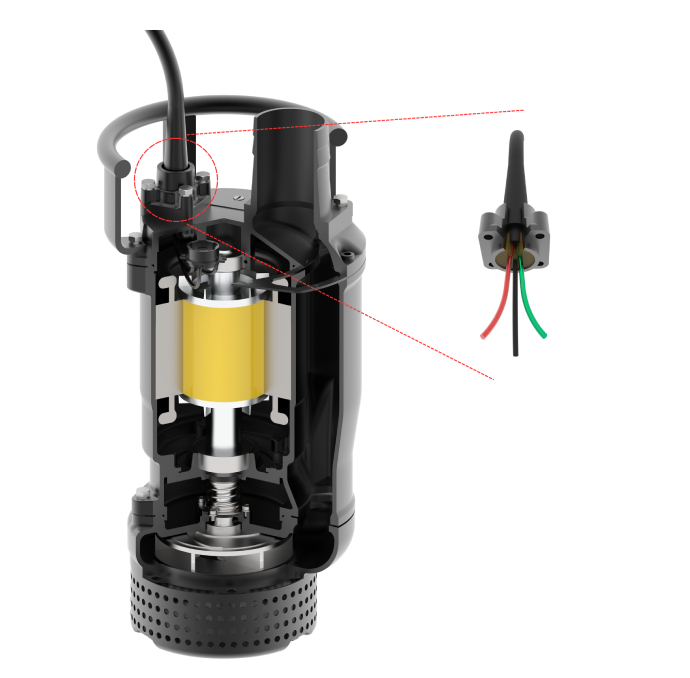

  • The pump has the special technology of the cable, so you don’t need to worry about the leakage of water from cable any more.

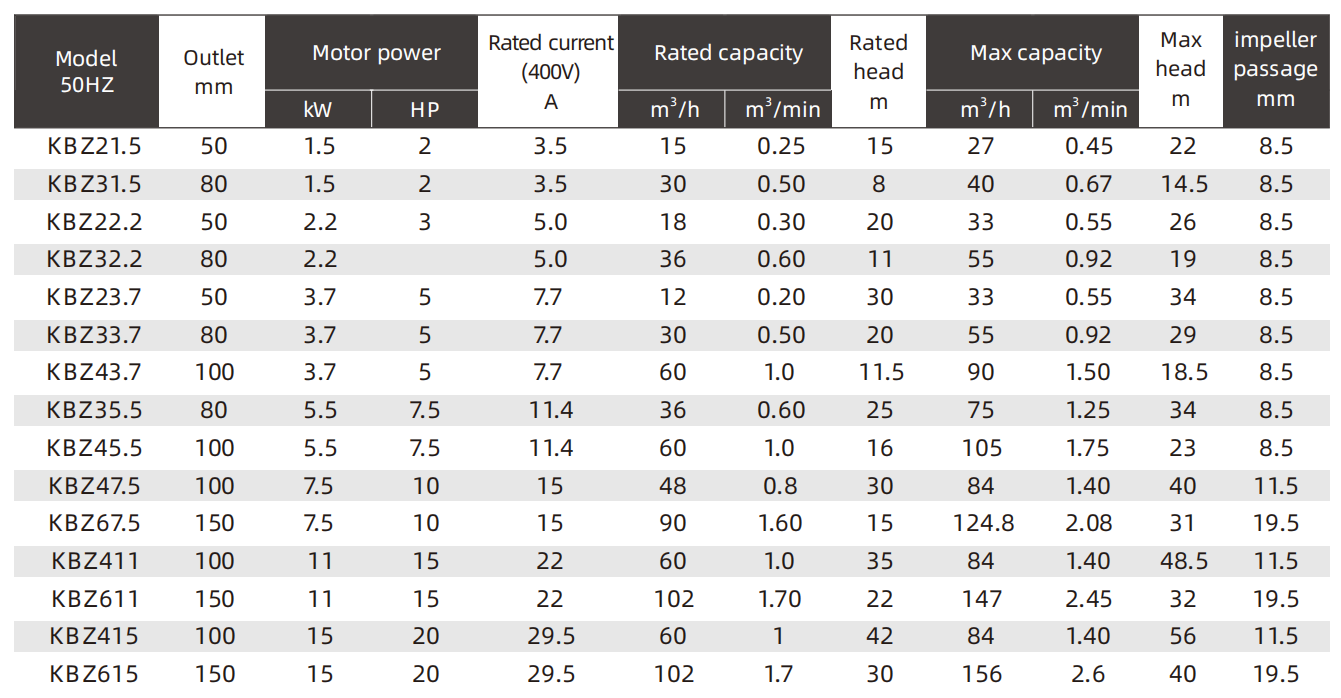

  • Discharge 50mm (2”) to 150mm (6”), motor [1.5kW(2HP) to 15kW(20HP)].

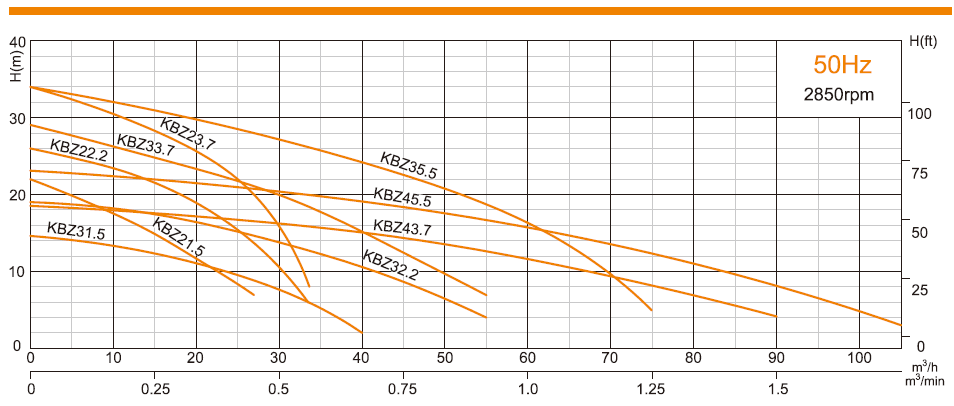

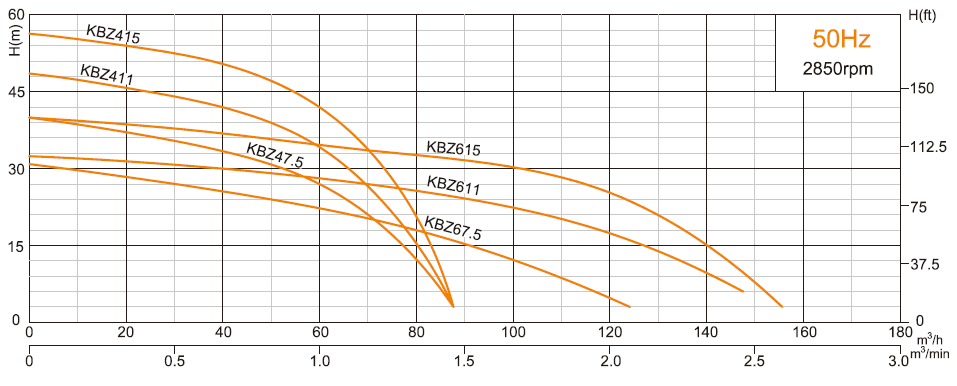

  Operating Limits

  • Capacity: up to 160 m³/h
  • Head: up to 57 meters
  • Power: 1.5kW(2HP) to 15 kW (20HP)
  • Power supply: three phase 380V ± 10%, 50Hz; 380V ± 10%, 60Hz
  • Cable length: 10m
  • Water temperature: up to 40°C
  • Max. water depth: 25m

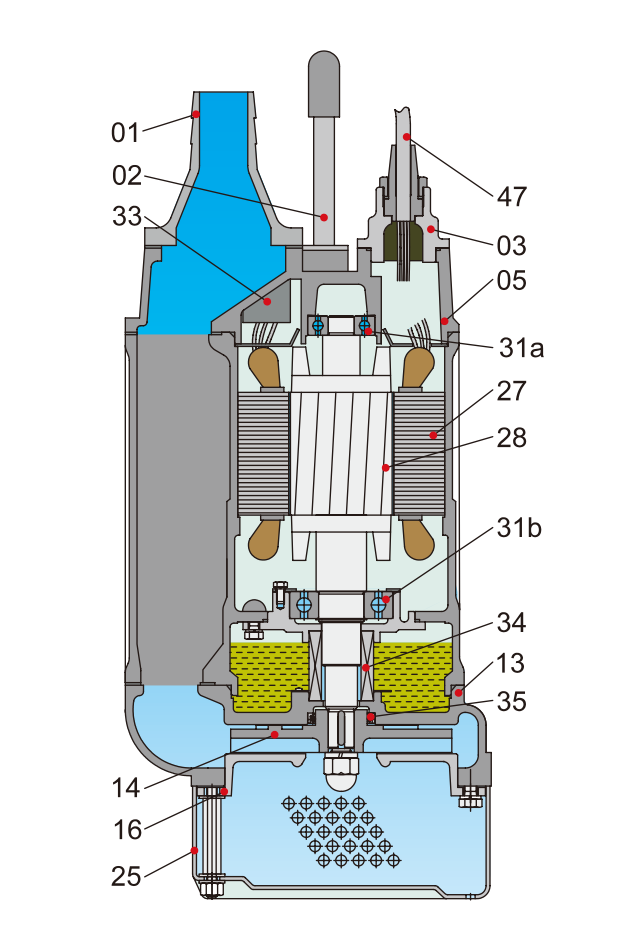

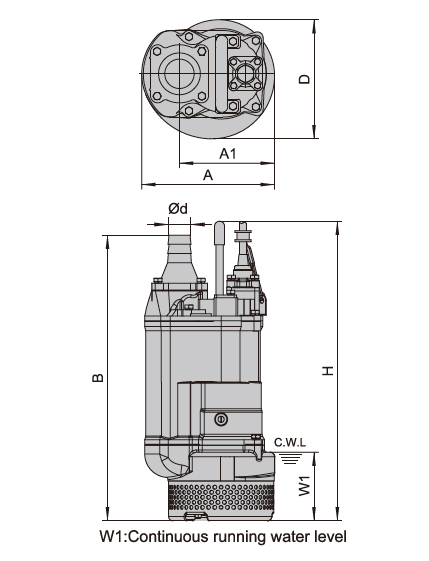

  Structural Characteristics

  • Insulation Class: F
  • Protection Class: IP68
