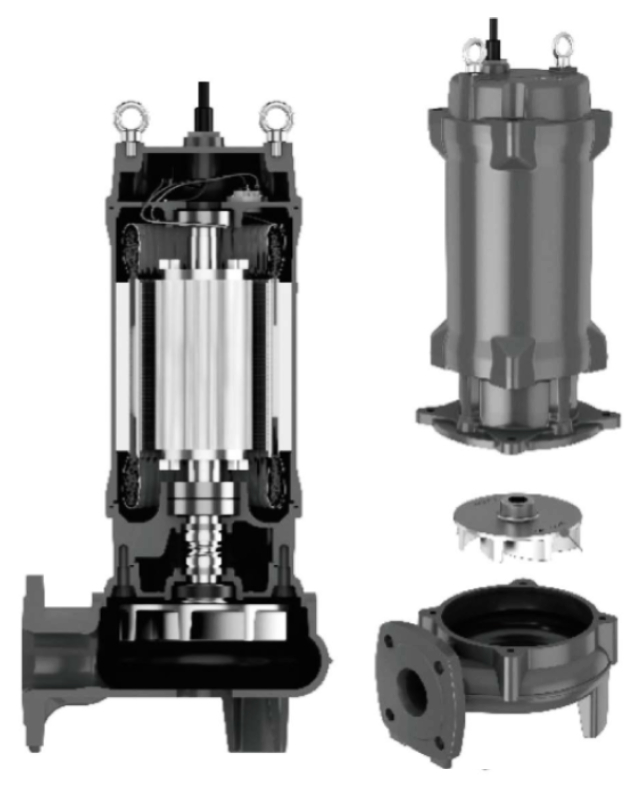

U High-Flow-Rate Submersible Sewage Pump

• Model Analysis

  • • 50 → Outlet
    • 2 → 2-pole motor
    • 1.5 → Power
    • P-45 → Solid Passage

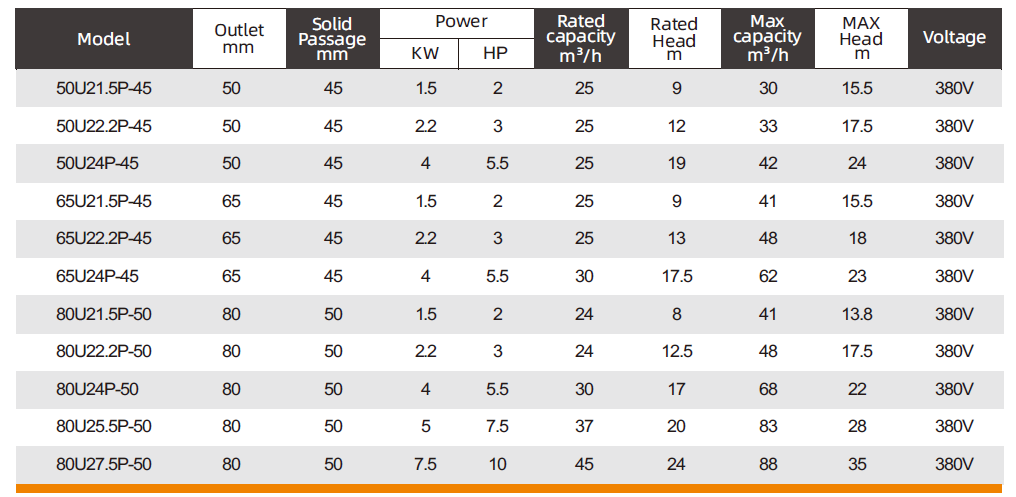

  Range Characteristics

  • Power: 1.5-7.5 kW
  • Poles: 2
  • Discharge: DN65-80
  • Max flow rate: 80m³/h
  • Max head: 33m
  • Soild passage: 45 mm

  Specification

  • Insulation class: B
  • Protection class: IP68
  • Water temperature: up to 40℃
  • PH: 6 -10
  • Max water depth: 5m
